THE OFFICIAL RADIATOR OF DRAG RACING ® ....SINCE 1976
|
|
|
From staging lanes and return road trips to quick cool downs between rounds, Ron Davis drag racing radiators are engineered for maximum performance. Made with the latest technology and skilled craftsmanship, Ron Davis Radiators have been dominating the drag strip since 1976.
Please call or E mail us at 1.800.842.5166
|
|
|
25" wide and 13" tall by 2" thick |
|
|
Part Number 1A-1100-1
$998.00 USD plus shipping
|
5.5" thick including fan with 1¼" hose connections on the passenger side and four (4) ¼"-20 mounting bosses on the front side. This Ron Davis Drag Racing Radiator come with a 12" Spal Fan and it also accepts a standard pressure cap. | |
|
Available without fan & shroud: P/N 1A-1100
|
Front view of 1A-1100-1
|
|
|
|

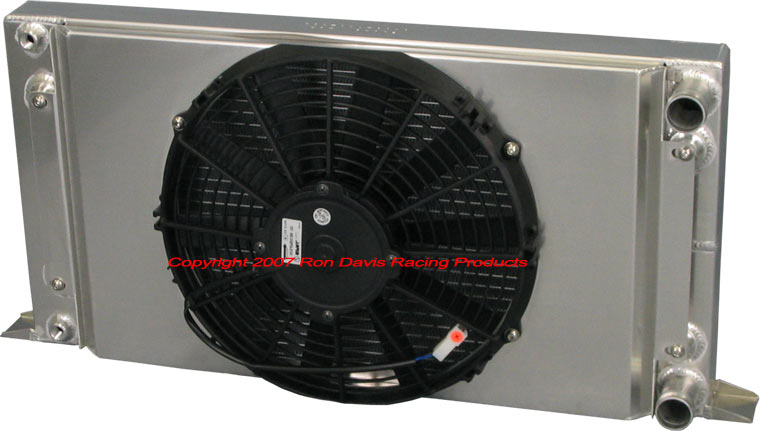

25" wide and 13" tall by 2" thick | |
|
Part number 1A-1100N-1
$998.00 USD plus shipping
|
5.5" thick including fan with 1¼" hose connections on the passenger side and four (4) ¼"-20 mounting bosses on the front side, and a ¼" female pipe fitting for bleeding the system. | |
|
|
||

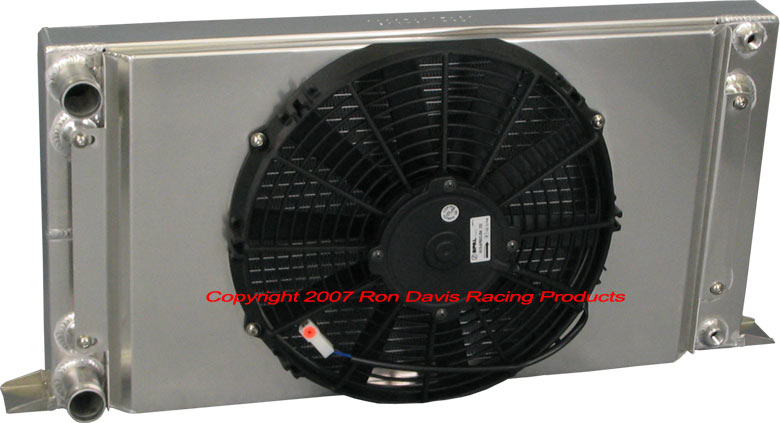

| 25" wide and 13" tall by 2" thick | ||
|
Part number 1A-1100N-1LH
$998.00 USD plus shipping
|
5.5" thick including fan with 1¼" hose connections on the driver side and four (4) ¼"-20 mounting bosses on the front side, and a ¼" female pipe fitting for bleeding the system. |
|
| 22" wide by 13" tall by 2" thick | ||
|
Part number 1A-1120-1
$1103.00 USD plus shipping
|
Designed for both door slammers and dragsters. 5.5" thick including fan with 1¼" hose connections and two ¼" female pipe fittings for bleeding and draining the system. It also includes mounting brackets welded on all four corners. | |
|
Available without fan & shroud: P/N 1A-1120
|
||
|
|
22" wide by 13" tall by 2" thick | |
|
Part number 1A-1120P-1
$1115.00 USD plus shipping
|
Designed for both door slammers and dragsters. 5.5" thick including fan with ¾" female pipe inlet and outlet connections and two ¼" female pipe fittings for bleeding and draining the system. It also includes mounting brackets welded on all four corners. | |

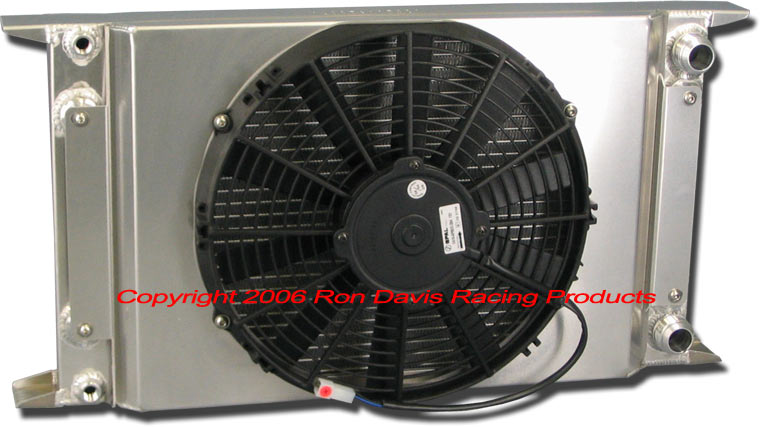

| 22" wide by 13" tall by 2" thick | ||
|
Part number 1A-1120A-1
$1115.00 USD plus shipping
|
Designed for both door slammers and dragsters. 5.5" thick including fan with #16AN male hose connections and two ¼" female pipe fittings for bleeding and draining the system. It also includes mounting brackets welded on all four corners. | |
| 25" wide by 16" tall by 2" thick | ||
|
Part number 1A-1130-1
$1034.00 USD plus shipping
|
Perfect for cars weighing over 2800lbs. 5.5" thick including fan with 1¼" hose connections on the passenger side and four (4) ¼"-20 mounting bosses on the front side, it also accepts a standard pressure cap. | |
|
Available without fan & shroud: P/N 1A-1130
|

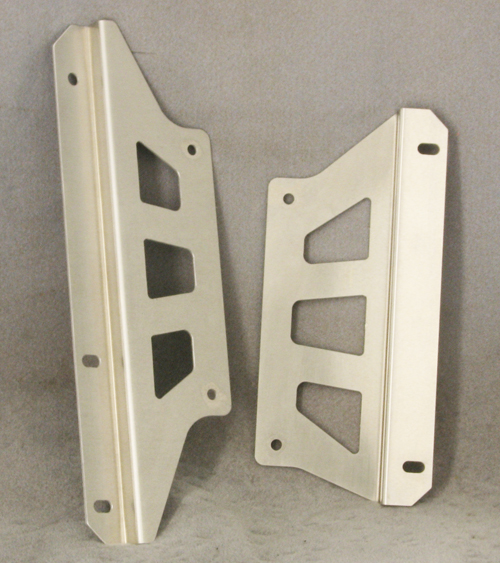

Mounting brackets to bolt into original core support of 67-69 Camaro/ Firebird. (sold separately) P/N 2-1130 |
|
|
|

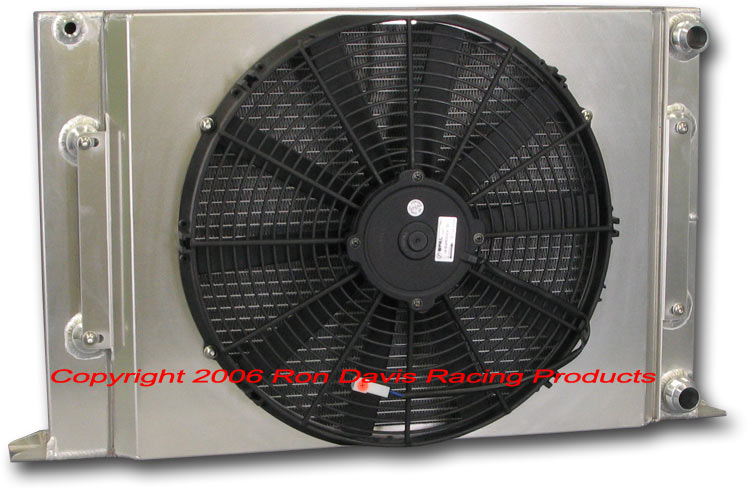

25" wide by 16" tall by 2" thick | |
|
Part number 1A-1130NA-1
$1086.00 USD plus shipping |
Perfect for cars weighing over 2800lbs. 5.5" thick including fan with #16AN male hose connections on the passenger side and four (4) ¼"-20 mounting bosses on the front side, and a ¼" female pipe fitting for bleeding the system. | |
|
Mounting brackets to bolt into original core support of 67-69 Camaro/ Firebird. (sold separately) P/N 2-1130 |
||
|
|

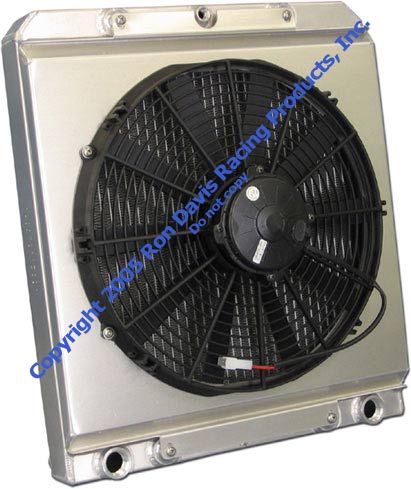

20" tall by 17 3/8" wide by 2" thick | |
|
Part number 1A-1140-1
$1125.00 USD plus shipping
|
Designed to be mounted upright behind the driver or be laid down above the transmission. 5.5" thick including fan with ¾" female pipe inlet and outlet connections and a ¼" female pipe fitting at the top. Also includes four (4) ¼"-20 mounting bosses on the front side. | |
|
Available without fan & shroud: P/N 1A-1140
|
||
|
|
16" tall by 14" wide by 2" thick | |
|
Part number 1A-1150-1
$946.00 USD plus shipping
|
Ideal for mounting above the transmission. 5.5" thick including fan with ¾" female pipe inlet and outlet connections and a ¼" female pipe fitting at the top. It also has four (4) ¼"-20 mounting bosses on the bottom side. | |
|
Available without fan & shroud: P/N 1A-1150
|

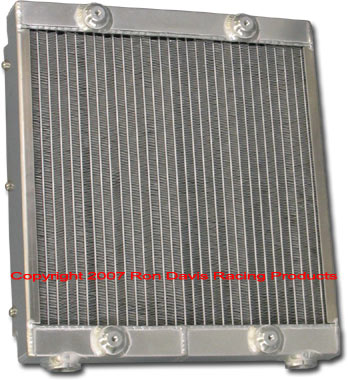

Front View of 1A-1150-1
|
|
|
|
||
