For Racing Applications Only

Please call or E-mail Us for price and availability.

623-877-5000

NASCAR Stock Radiators





  Short Track Radiators

radiator, auto radiator, aluminum radiators, custom aluminum racing radiators, custom aluminum race car radiators



16" High

Part Number 1S-22163 1S-24163 1S-26163 1S-28163 1S-31163
Overall Width 22" 24" 26" 28" 31"
Overall Height 16" 16" 16" 16" 16"
Tank Thickness 3" 3" 3" 3" 3"



19" High
Part Number 1S-22193 1S-24193 1S-26193 1S-28193 1S-31193
Overall Width 22" 24" 26" 28" 31"
Overall Height 19" 19" 19" 19" 19"
Tank Thickness 3" 3" 3" 3" 3"

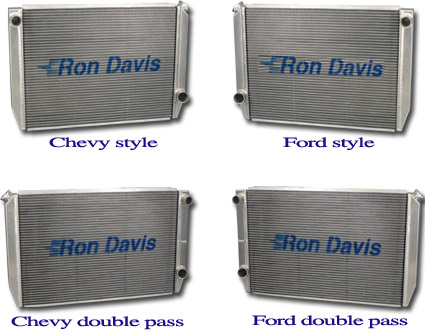

Available options: Add the following suffix or combination to the end of the part number

Part Number  D = Dual Pass    F = Ford    N = No Fill neck (includes 1/4 FNPT bleed)   A = -16 AN Inlet

A Few Models Are Pictured Below

  Part number Description

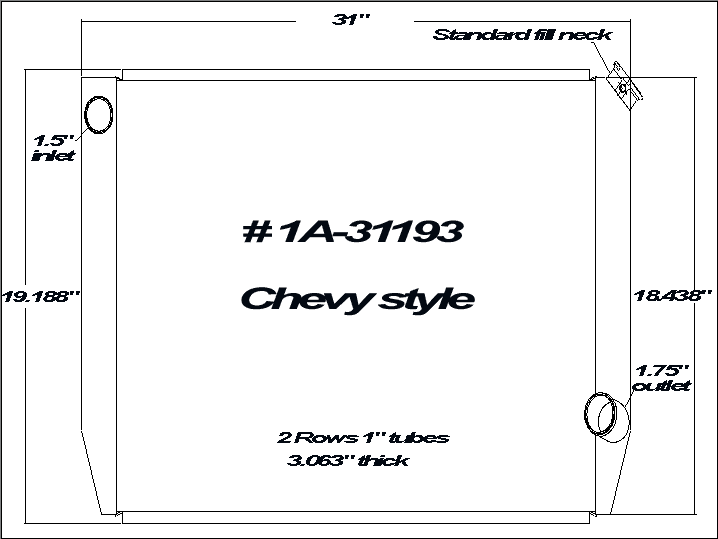

CHEVY RADIATOR, auto radiators, aluminum car radiators and custom automotive radiators including aluminum radiators, auto radiator, car radiator 1S-31193
  • 31" X 19" X 3" Chevy style outlets
  • 1.5" Inlet, 1.75" Outlet
  • Standard Filler Neck
  • 2 rows of 1" wide tubes
     custom aluminum radiator, auto radiator, aluminum car radiators and custom automotive radiators including aluminum radiators, auto radiator, car radiator, ron davis, ron davis radiators

RADIATOR 1S-31193F
  • 31" X 19" X 3" Ford style outlets
  • 1.5" Inlet, 1.75" Outlet
  • Standard Filler Neck
  • 2 rows of 1" wide tubes

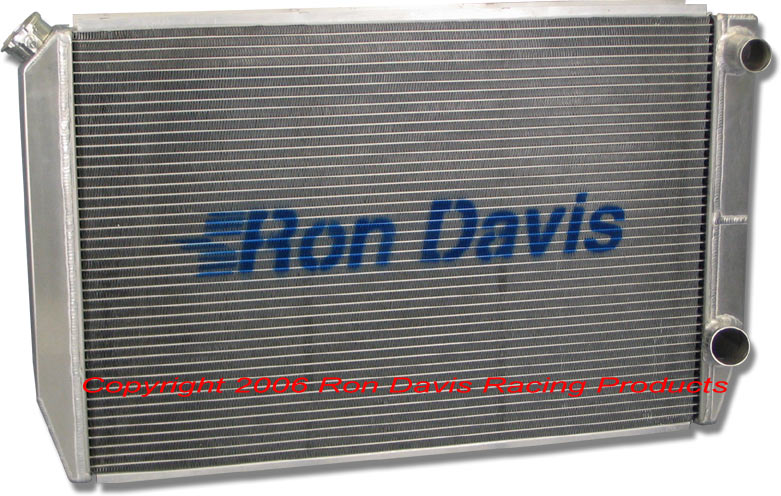

RADIATOR, auto radiators, aluminum car radiators and custom automotive radiators including aluminum radiators, auto radiator, car radiator 1S-31193D
  • 31" X 19" X 3" Chevy Double Pass style outlets
  • 1.5" Inlet, 1.75" Outlet
  • Standard Filler Neck
  • 2 rows of 1" wide tubes

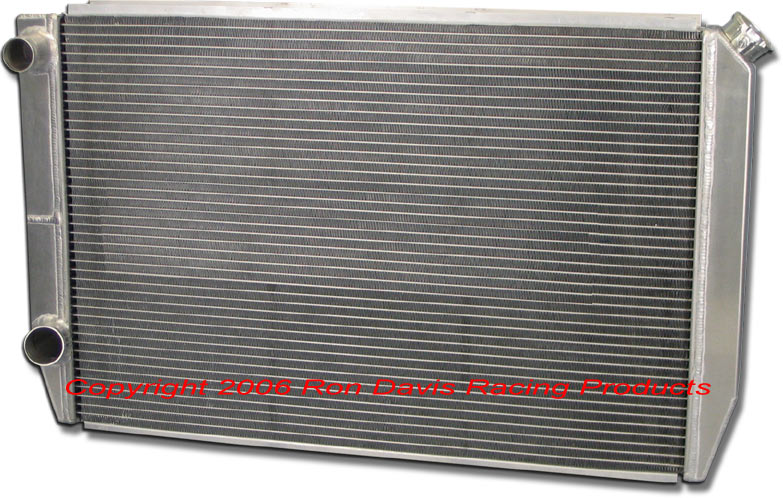

RADIATOR 1S-31193FD
  • 31" X 19" X 3" Ford Double Pass style outlets
  • 1.5" Inlet, 1.75" Outlet
  • Standard Filler Neck
  • 2 rows of 1" wide tubes

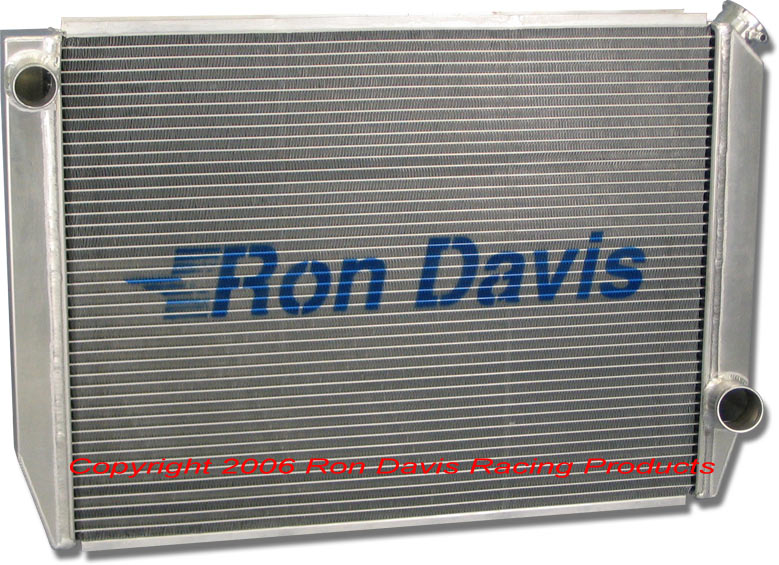

RADIATOR 1S-28193
  • 28" X 19" X 3" Chevy style outlets
  • 1.5" Inlet, 1.75" Outlet
  • Standard Filler Neck
  • 2 rows of 1" wide tubes

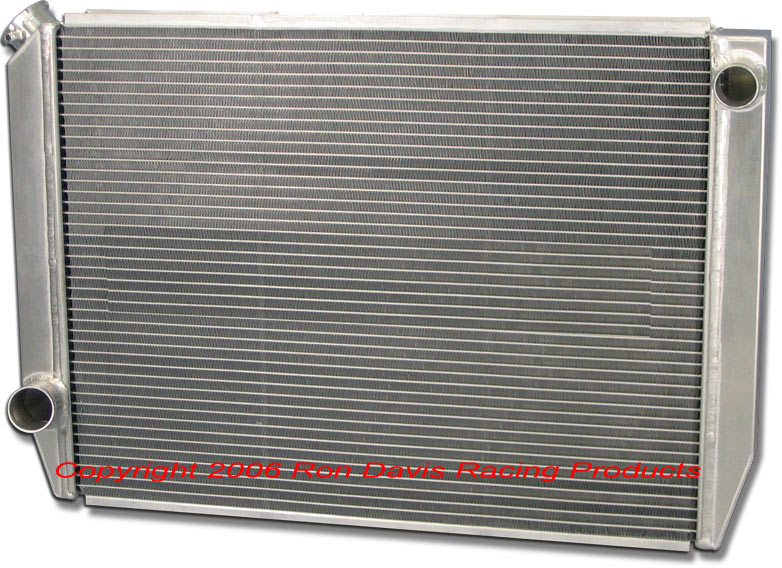

RADIATOR 1S-28193F
  • 28" X 19" X 3" Ford style outlets
  • 1.5" Inlet, 1.75" Outlet
  • Standard Filler Neck
  • 2 rows of 1" wide tubes


RADIATOR 1S-26193
  • 26" X 19" X 3" Chevy style outlets
  • 1.5" Inlet, 1.75" Outlet
  • Standard Filler Neck
  • 2 rows of 1" wide tubes


RADIATOR 1S-26193F
  • 26" X 19" X 3" Ford style outlets
  • 1.5" Inlet, 1.75" Outlet
  • Standard Filler Neck
  • 2 rows of 1" wide tubes


RADIATOR 1S-24193
  • 24" X 19" X 3" Chevy style outlets
  • 1.5" Inlet, 1.75" Outlet
  • Standard Filler Neck
  • 2 rows of 1" wide tubes


RADIATOR 1S-24193F
  • 24" X 19" X 3" Ford style outlets
  • 1.5" Inlet, 1.75" Outlet
  • Standard Filler Neck
  • 2 rows of 1" wide tubes
